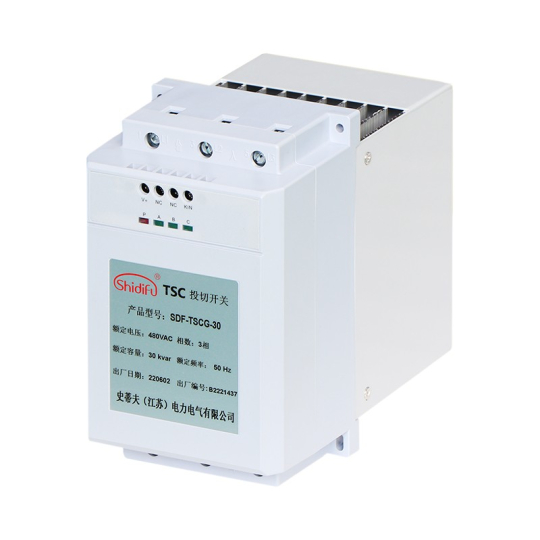

TSC投切开关

额定电压

Rated voltage

共补/Common compensation: AC 380V ± 20%   50Hz

分补/Seperate compensation: AC 220±20%   50Hz

额定容量

Rated capacity

共补/Common compensation: ≤ 60kvar

分补/Seperate compensation: ≤ 60kvar

工作电源

Working power supply

共补/Common compensation: AC 380V/220V ± 20%   50Hz

分补/Seperate compensation: AC 220V ± 20%   50Hz

控制电压

Control voltage

直流电压5~12V/10mA(由控制器提供控制电压)

DC voltage 5~12V/10mA (The control voltage is provided by the controller)

电源电压谐波畸变率

Power supply voltage harmonic distortion

≤5%

动作相应时间

Corresponding time of action

≤10ms

环境温度

Surrounding temperature

-25℃~+55℃，湿度≤90%，海拔2000米以下（超出范围请致电咨询)

-25℃~+55℃, humidity ≤ 90%, 2000 meters above sea level (Please contact us for more than required)

环境条件

Environment condition

介质无导电尘埃

Dielectric no conductive dust

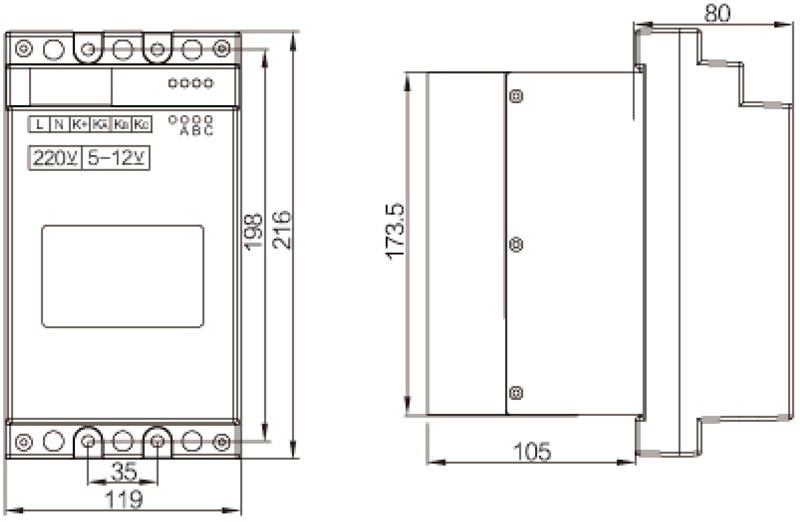

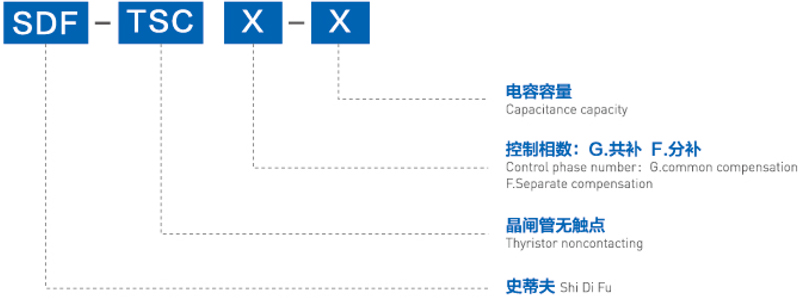

补偿方式Compensation method

电容器容量Cap. (kvar)

产品型号

Type

补偿方式Compensation method

电容器容量

Cap. (kvar)

产品型号

Type

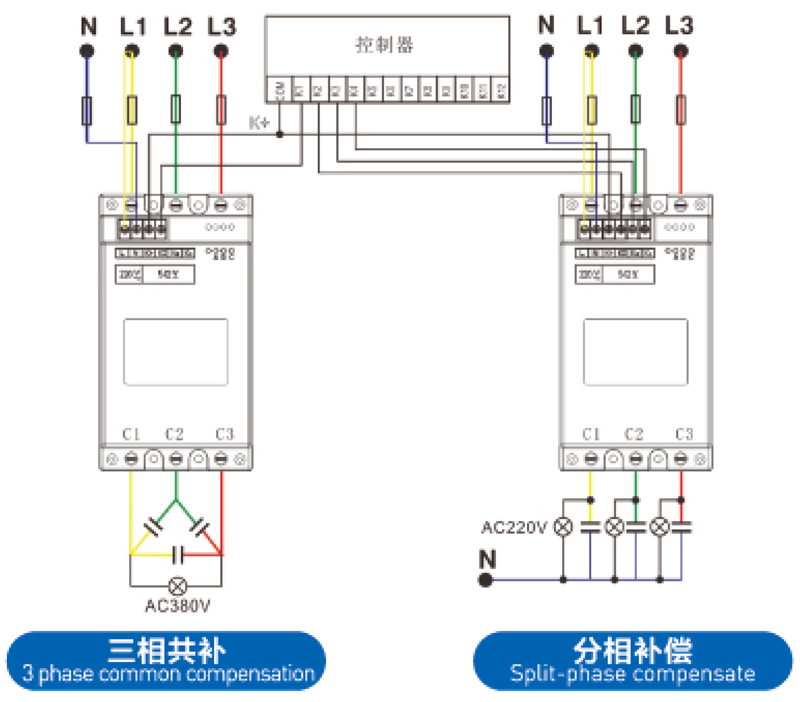

三相共补

3 phase common compensation

≤20

SDF-TSCG-20

分相补偿

Split -phase compensate

≤20

SDF-TSCF-20

≤30

SDF-TSCG-30

≤30

SDF-TSCF-30

≤40

SDF-TSCG-40

≤40

SDF-TSCF- 40

≤50

SDF-TSCG-50

≤50

SDF-TSCF-50

≤60

SDF-TSCG-60

≤60

SDF-TSCF-60
